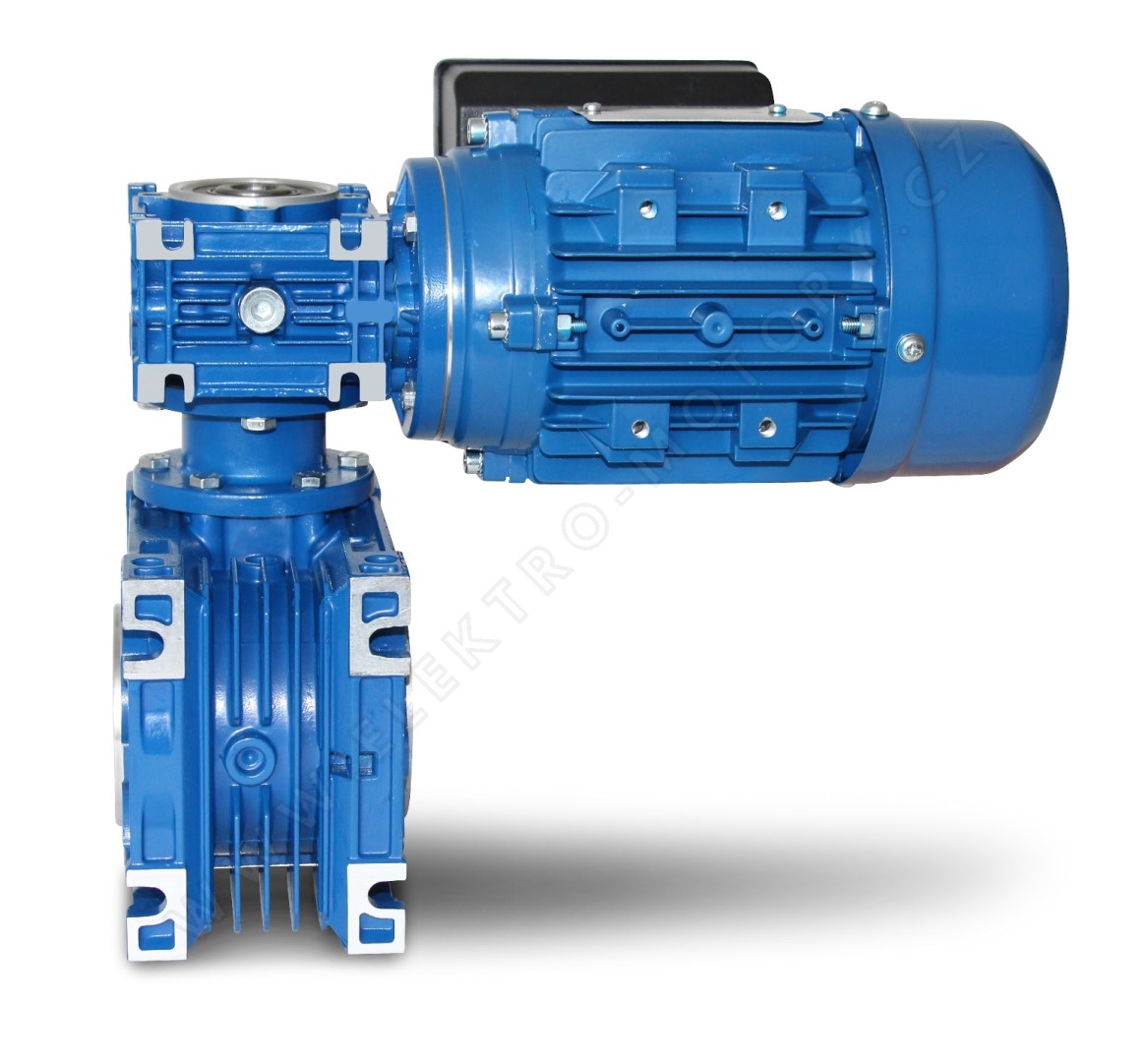

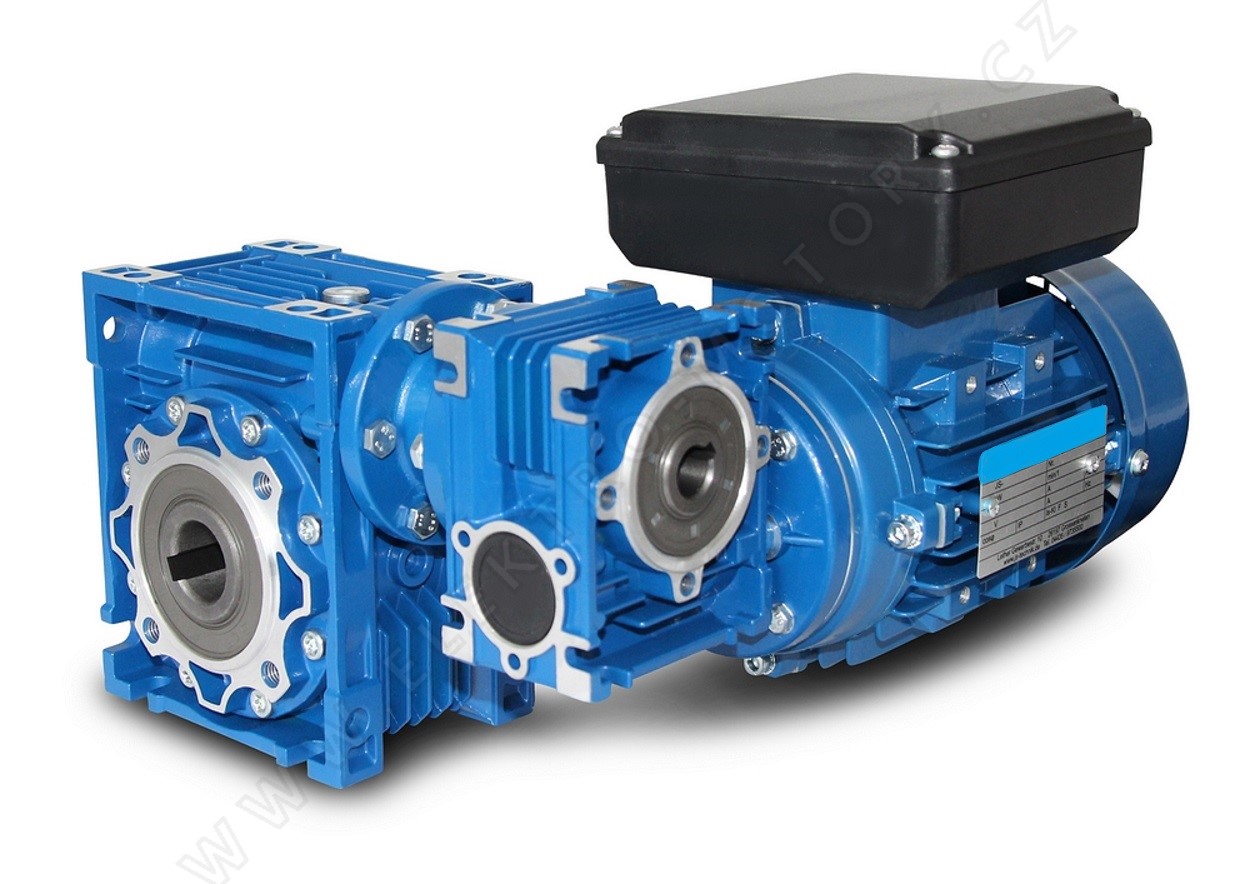

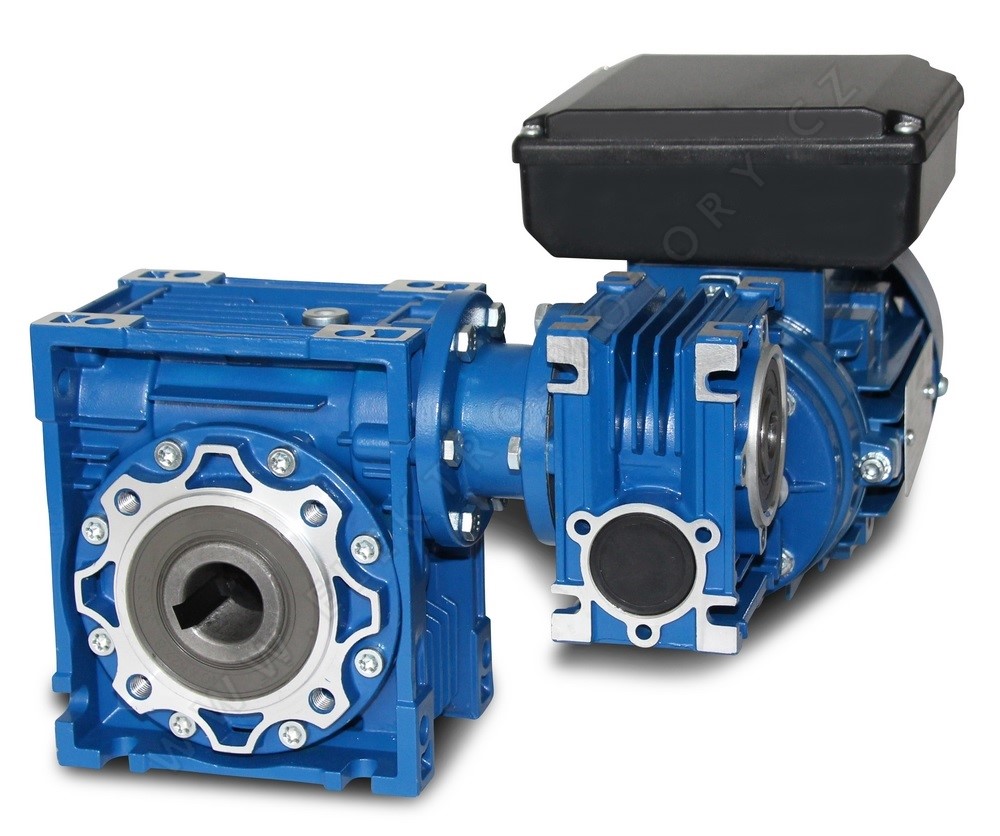

Electric gearbox MR030/040+0.18kW/4p. 230V_n2= 2.3 rpm

Single-phase electric gearbox design

• Motor: 180W
• Voltage:             230V
• Output speed: n2= 2.3 rpm
• Permissible load: 110 – 130 kg
• Design: with two worm gears
• Output hole: 18 mm with groove on both sides of the gearbox

Technical parameters:

• Protection: IP55
• For ambient temperature: 80°C
• Standard paint: RAL5010
• Casing: Aluminum
• Set dimensions: L x W x H - 32 x 23 x 21 cm

When roasting larger piglets and pigs, it is necessary to ensure the most ideal centering of the roast and, if possible, avoid operating with needles with large clearance in the mounting, as these can cause excessive shocks to the gearbox shafts and damage the gear system.

For safety reasons, it is generally necessary to connect the motor to the network via surge protection and to comply with applicable standards during installation (this will prevent electric shock and reduce the possibility of motor damage).
