7,5 kW / 2880_B34_MSC 81 2-2_400V_right hand thread

Name: 7,5 kW / 2880_B34_MSC 81 2-2_400V_right hand thread
Brand: PRO MOTOR
SKU: MP 207503080-P
Price: 435.10 eur
Availability: InStock

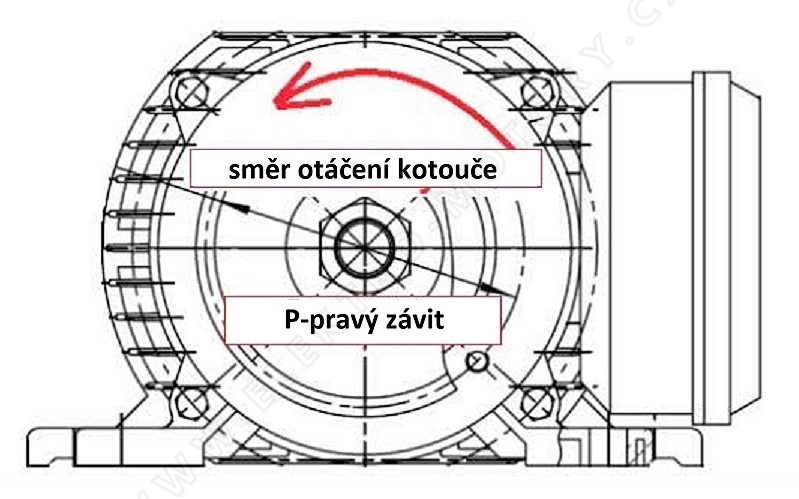

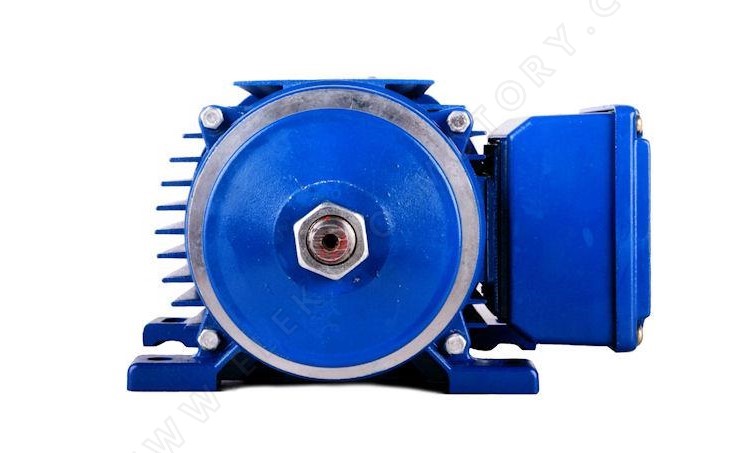

Three-phase saw electric motor with PTC thermistor for cutting via a cutting disc which is connected directly to the rotor of the electric motor. There is a RIGHT thread on the motor shaft. counterclockwise rotation diameter of the clamping disk (D) 40 mm continuous operation S1 .: 7.5 kW / IP55

Select a variant

More variants Less variations

7,5 kW / 2880_B34_MSC 81 2-2_400V_right hand threadThree-phase saw electric motor with PTC thermistor for cutting via a cutting disc which is connected directly to the rotor of the electric motor. There is a RIGHT thread on the motor shaft. counterclockwise rotation diameter of the clamping disk (D) 40 mm continuous operation S1 .: 7.5 kW / IP55

Code:MP 207503080-P

Skladem 1 pcs

435,1 EUR

7.5 kW / 2880 B34 MSC 81 B2 380V left hand threadThree-phase saw electric motor with PTC thermistor for cutting via a cutting disc which is connected directly to the rotor of the electric motor. There is a LEFT thread on the motor shaft. clockwise rotation diameter of clamping disk (D) 40 mm, continuous operation S1 .: 7.5 kW / IP55, 50Hz

Code:MP 207503080-L

Skladem 1 pcs

435,1 EUR

435,1 EUR 359,6 EUR excl. VAT435,1 EUR / pcs

Quantity discounts

from 2 pcs422,0 EUR348,8 EUR

from 5 pcs413,3 EUR341,6 EUR

from 10 pcs404,6 EUR334,4 EUR

from 20 pcs391,6 EUR323,6 EUR

Buy

Poptat

Skladem 1 pcs

Ext. stock 15 Qty

Personally in shop:ihned

With a delivery company:zítra

Code

MP 207503080-P

Pravý (SDK) 8/25

Producer

PRO MOTOR

Warranty

24 months

Watch Compare I need an advice Recommend to a friend PrintAdd to Favorites

Jmenovitý proud [A]:	14,1 A
Vinutí a ochrana motoru, nátěry, vestavby, dokumentace aj..	PTO-Termokontakt
Délka dodání z ext. skladu	14
Polarita (otáčky/min)	2-pól (2800 ot/min)
Materiál	Hliníkové pouzdro (AL)
Vstupní frekvence [Hz]	50Hz, 400V/690V, D/Y, 60Hz, 460V/795V, D/Y
Napětí [V] / zapojení [Y.nebo D]	400V [D]; 400/690V, D/Y
Obchodní název motoru	MSC
Provedení - tvar příruby IM:	IM B34( F1)-patka a malá příruba
Osová výška motoru H [mm]	71
Průměr upínacího otvoru (D)	40 mm
Levý nebo pravý závit	Pravý závit
Výkon elektromotoru [kW]	7,50 kW
Druhy provozu:	S 4 - 80%

show all hide

7.5 kW / 2880 B34 MSC 81 B2 380V left hand thread

Skladem 1 pcs

359,6 EUR excl. VAT435,1 EUR

Three-phase electric saw motor with PTC thermistor for cutting through a cutting disc that connects directly to the rotor of the electric motor.

There is a LEFT thread on the motor shaft.
clockwise rotation

clamping disc diameter (D) 40 mm
thread diameter 24 mm
Operation ( 50Hz ) - S4-80% - 7.5kW / IP55
Operation ( 50Hz ) - S1 - 5.5kW / IP55
Operation ( 60Hz ) - S4-80% - 9kW / IP55
Operation ( 60Hz ) - S1 - 7.5kW / IP55

Rated torque: Nm 24.87

Permissible ambient temperature: -20°C to + 40°C

Temperature sensor: PTO

Shaft diameter: 32mm

Thread: M24

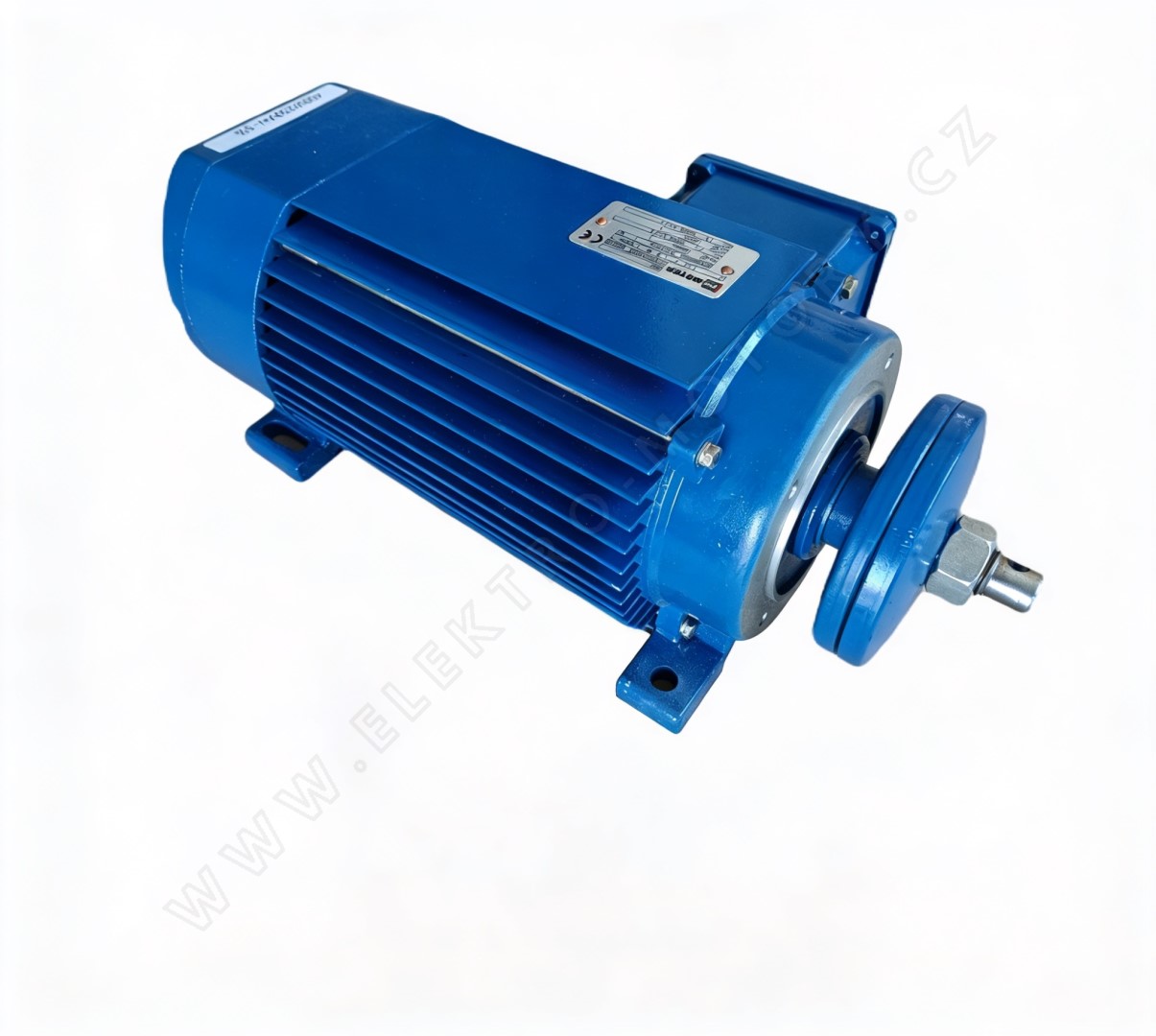

Three-phase electric motor serving as a drive unit for household, industrial table or other saws.

The motor construction is equipped with a shaft with a holder for a cutting saw blade.
