2,2 kW / 940_IMB5_IE1_Y3-100 LC6_230/400 V_D/Y

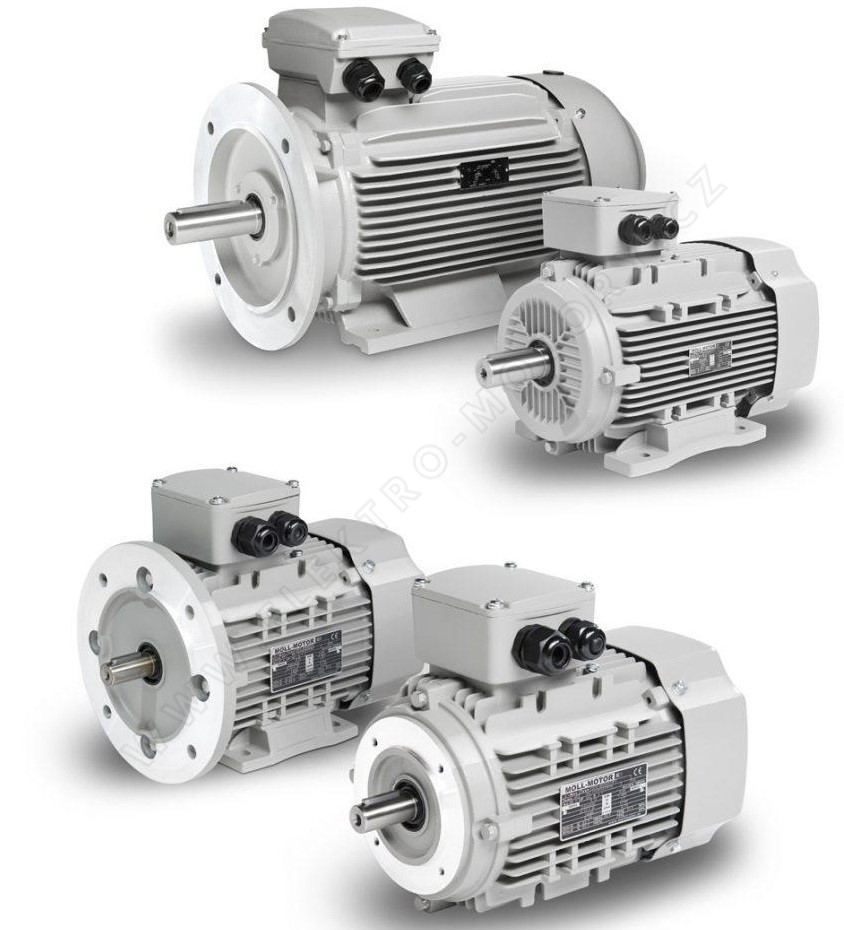

Asynchronous three-phase electric motor with large flange B5 with increased performance (smaller sizes) connection (Y / D) 400/690 V to triangle (D) in aluminum frame (Y3) in color RAL 7030 (gray) removable feet any rotation of the terminal block protection IP55, insulation class F, operation S3-75% with the lowest price guarantee

2,2 kW / 940_IE1_Y3-100 LC6_230/400 V_D/Y

Select a variant

More variants Less variations

2,2 kW / 940_IMB14F1_IE1_Y3-100 LC6_230/400 V_D/YAsynchronous three-phase electric motor with small flange B14 F1 with increased performance (smaller sizes) connection (Y / D) 400/690 V to triangle (D) in aluminum frame (Y3) in color RAL 7030 (gray) removable feet any rotation of the terminal block protection IP55, insulation class F, operation S3-75% with the lowest price guarantee

Code:60022046 L-IE1

Na dotaz

265,5 EUR

2,2 kW / 940_IMB34F1_IE1_Y3-100 LC6_230/400 V_D/Y2.2 kW / 6p. B34F1 ( Y ) 400 V with increased power

Code:60022046 L-IE1P

Na dotaz

274,7 EUR

2,2 kW / 940_IMB3_IE1_Y3-100 LC6_230/400 V_D/YAsynchronous three-phase electric foot motor B3 with increased performance (smaller sizes) connection (Y / D) 400/690 V to triangle (D) in aluminum frame (Y3) in color RAL 7030 (gray) removable feet any rotation of the terminal block protection IP55, insulation class F, operation S3 75%. with the lowest price guarantee

Code:60022036 L-IE1

Na dotaz

241,4 EUR

2,2 kW / 940_IMB5_IE1_Y3-100 LC6_230/400 V_D/YAsynchronous three-phase electric motor with large flange B5 with increased performance (smaller sizes) connection (Y / D) 400/690 V to triangle (D) in aluminum frame (Y3) in color RAL 7030 (gray) removable feet any rotation of the terminal block protection IP55, insulation class F, operation S3-75% with the lowest price guarantee

Code:60022056 L-IE1

Na dotaz

265,5 EUR

265,5 EUR 219,4 EUR excl. VAT265,5 EUR / pcs

Buy

Poptat

Na dotaz

Personally in shop:on request

With a delivery company:on request

Code

60022056 L-IE1

X/IE1_10/24_TD=1týden

Producer

MOLL MOTOR

Warranty

24 months

Watch Compare I need an advice Recommend to a friend PrintAdd to Favorites

Materiál	Hliníkové pouzdro (AL)
Napětí [V] / zapojení [Y.nebo D]	400V [Y]; 230/400V, D/Y
Polarita (otáčky/min)	6-pól (1000 ot/min)
Průměr hřídele motoru D [mm]	28
Provedení - tvar příruby IM:	IM B5-s velkou přírubou
Osová výška motoru H [mm]	100
Výkon elektromotoru [kW]	2,20 kW
Délka dodání z ext. skladu	7

show all hide

Asynchronous three-phase electric motor with large flange B5

with increased performance (smaller sizes)
connection (Y / D) 400/690 V to triangle (D)
in aluminum frame (Y3) in color RAL 7030 (gray)
removable feet
any rotation of the terminal block
krytí IP55, třída izolace F, provoz S3-75%
s garancí nejnižší ceny

Files

Rozměry 100L-B5
