worm gearbox DMRV 050 1:25; 71/B14

Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 25 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Select a variant

More variants Less variations

worm gear MR 050 1:80; 71 / B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 80 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500804071

Skladem 1 pcs

87,82 EUR

worm gearbox DMRV 050 1: 5; 71B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 5 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500054071

Skladem ext. 10 pcs

87,82 EUR

worm gearbox DMRV 050 1: 7.5; 71 / B5Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 7.5 inlet flange B5, axial height of the motor H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500075071

Skladem ext. 1 pcs

87,82 EUR

worm gearbox DMRV 050 1:100; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 100

Code:PS0501004071

Skladem 3 pcs

87,82 EUR

worm gearbox DMRV 050 1:10; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 10 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500104071

Skladem 1 pcs

87,82 EUR

worm gearbox DMRV 050 1:20; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 20 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500204071-MRV

Skladem 1 pcs

87,82 EUR

worm gearbox DMRV 050 1:25; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 25 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500254071

Skladem 2 pcs

87,82 EUR

worm gearbox DMRV 050 1:30; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 30 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500304071

Skladem 2 pcs

87,82 EUR

worm gearbox DMRV 050 1:40; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 40 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500404071

Skladem 2 pcs

87,82 EUR

worm gearbox DMRV 050 1:50; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 50 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500504071

Skladem 2 pcs

87,82 EUR

worm gearbox DMRV 050 1:60; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 60 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500604071

Skladem 2 pcs

87,82 EUR

worm gearbox DMRV 050 1:60; 71/B5Typ. DMRV 050 prevodový pomer i = 60 vstupná príruba B5, osová výška motora H - 71mm

Code:PS0500605071

Skladem ext. 8 pcs

87,82 EUR

worm gearbox DMRV 050 1:7.5; 71/B14Angular worm gearbox with inlet flange Typ. DMRV 050 gear ratio i = 7.5 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in RAL 7030 (gray) with the lowest price guarantee replacement of worm gearboxes Type: CHM, PMRV MR, CM

Code:PS0500074071

Skladem 1 pcs

87,82 EUR

worm gearbox MR 050 i = 15; 71 / B14Angular worm gearbox with inlet flange Typ. MR 050 gear ratio i = 15 inlet flange B14 F1, engine axle height H - 71mm mounting position U-universal in aluminum frame in color (blue) with the lowest price guarantee replacement of worm gearboxes Type: CHM, DMRV, PMRV

Code:PS0500154071

Skladem 1 pcs

87,82 EUR

87,82 EUR 72,58 EUR excl. VAT87,82 EUR / pcs

Quantity discounts

from 2 pcs85,19 EUR70,40 EUR

from 5 pcs83,43 EUR68,95 EUR

Buy

Poptat

Skladem 2 pcs

Ext. stock 2 Qty

Personally in shop:zítra

With a delivery company:pozítří

Code

PS0500254071

MR 050_71/B14 (S2G) 4

Producer

ITALY

Watch Compare I need an advice Recommend to a friend PrintAdd to Favorites

Délka dodání z ext. skladu	14
Výběr převodového poměru	1 : 25
Velikost převodovky	50
Výběr vstupních param. motor. př	PAM 71 / hřídel pr.14mm
Výběr spojení s motorem	B14 F1- s malou přírubou
Dutá výstupní hřídel pr.( mm)	25

show all hide

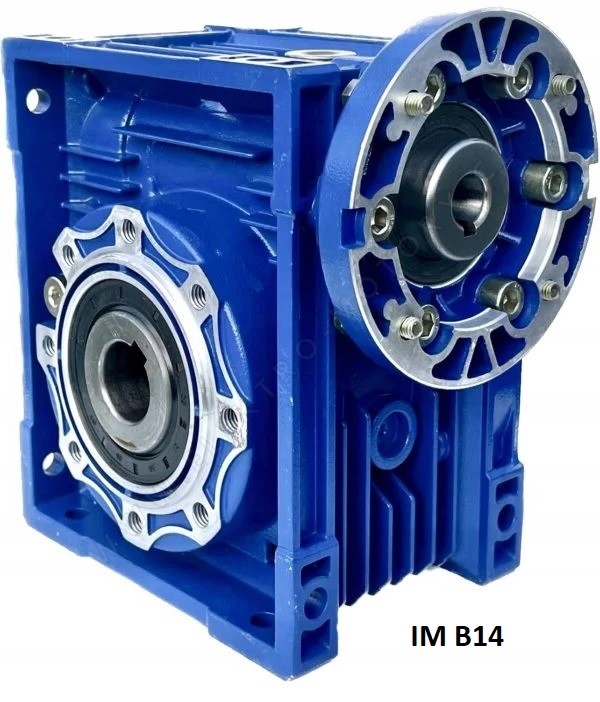

Angular worm gearbox with inlet flange Typ. DMRV 050

gear ratio i = 25
inlet flange B14 F1 , engine axle height H - 71mm
mounting position U-universal
in aluminum frame in RAL 7030 (gray)
s garancí nejnižší ceny
náhrada šnekových převodovek Typu: CHM, PMRV MR, CM

The gearboxes are delivered complete with synthetic filling and are therefore maintenance-free.

Files

MR 050 rozměry vstupní příruby MR 050 rozměry převodovky a výstupních přírub

References

MR 050 seznam příslušenství

DescriptionDownloadSpare parts and accessories

Code:20003740 P-IE1

0,37kW / 2730_IMB14F1_IE1_MS 71 1-2_230/400 V_D/Y

82,76 EUR

Skladem 4 pcs

electric motor with small flange B14 (F1) star connection ( Y ) 400 V

Code:20005540 P-IE1

0,55kW / 2760_IMB14F1_IE1_MS 71 2-2_230/400 V_D/Y

89,73 EUR

Skladem ext. 10 pcs

electric motor with small flange B14 (F1) star connection ( Y ) 400 V

Code:20005540 P-IE1-B

0,55kW / 2800 B14 IE1 GLEJ 71 B2 brake motor

183,6 EUR

Skladem ext. 1 pcs

Brake electric motor with B14F1 with small flange. Hard brake with a braking torque of 4 Nm

Code:20007546 P-IE1-B

0,75kW / 2855 B14 IE1 GLEJ 80 B2 brake motor

193,1 EUR

Skladem ext. 3 pcs

Brake electric motor with B14F1 with small flange. Hard brake with a braking torque of 4 Nm

Code:20007546 P-IE2

0,75 kW / 2730_IMB14F1_IE2_MS 71 3-2_230/400 V_D/Y

107,9 EUR

Na dotaz

Asynchronous three-phase electric motor with small flange B14 (F1) with increased performance (sm...

Code:303740-MY

0,37kW / 2640_IMB14F1_MYT 71 1-2_230V

98,87 EUR

Skladem ext. 4 pcs

Asynchronous single-phase electric motor with small flange B14 F1 230 V

Code:305540-ML

0.55 kW / 2820 rpm B14F1 / GMYL 71 B2; 230V with two capacitors

130,7 EUR

Skladem ext. 1 pcs

Standard single-phase electric motor with small flange B14F1 for heavy starting star connection (...

Code:305540-MY

0.55kW / 2860 B14 MY 71 B2 230V; with one capacitor

101,5 EUR

Skladem 2 pcs

Asynchronous single-phase electric motor with small flange B14 F1 230 V

Code:40002540 P-IE1

0,25 kW / 1350_IMB14F1_IE1_MS 71 1-4_230/400 V_D/Y

84,89 EUR

Skladem ext. 10 pcs

electric motor with small flange B14 ( F1 ) star connection ( Y ) 400 V

Code:40002540 P-IE1-B

0,25 kW / 1370_IMB14F1_IE1_MSH 71 1-4_230/400V_ D/Y_ brake motor

165,1 EUR

Skladem ext. 3 pcs

B14F1 brake electric motor with small flange. Hard brake with a braking torque of 4 Nm

Code:40003740 P-IE1

0,37kW / 1370_IMB14F1_IE1_MS 71 2-4_230/400V_ D/Y

86,31 EUR

Skladem 2 pcs

electric motor with small flange B14 ( F1 ) star connection ( Y ) 400 V

Code:40003740 P-IE1-B

0,37 kW / 1370_IMB14F1_IE1_MSH 71 2-4_230/400V_ D/Y_brake motor

166,3 EUR

Skladem 3 pcs

B14F1 brake electric motor with small flange. Hard brake with a braking torque of 4 Nm

Code:40005546 P-IE1

0,55kW / 1380_IMB14F1_IE1_MS 71 3-4 _230/400 V_ D/Y

100,1 EUR

Skladem 4 pcs

elektromotor s malou prírubou B14 F1 zapojenie do hviezdy ( Y ) 400 V

Code:40005546 P-IE1-B

0.55kW / 1370_IMB14F1_IE1_MSH 71 3-4_230/400V_D/Y_brake motor

168,2 EUR

Skladem ext. 12 pcs

Brzdový elektromotor s B14 malou prírubou. Tvrdá brzda s brzdným momentom 14 Nm

Code:502540-ML

0,25kW / 1400_IMB14F1_ML 71 1-4_230V

106,2 EUR

Na dotaz

Standard single-phase electric motor with small flange B14F1 for starting under load star connect...

Code:502540-MY

0,25kW / 1320_IMB14F1_MYT 71 1-4_230V

96,84 EUR

Skladem 1 pcs

Asynchronous single-phase electric motor with one capacitor and small flange B14F1 star connectio...

Code:503740-ML

0,37 kW / 1380_IMB14F1_ML 71 2-4_230V

108,2 EUR

Na dotaz

Standard single-phase electric motor with small flange B14F1 for starting under load star connect...

Code:503740-MY

0,37kW / 1320_IMB14F1_MYT 71 2-4_230V

100,1 EUR

Skladem 2 pcs

Asynchronous single-phase electric motor with small flange B14 F1 230 V

Code:60001840 P-IE1

0,18 kW / 880_IMB14F1_IE1_MS 71 1-6_230/400 V_D/Y

90,00 EUR

Skladem ext. 24 pcs

electric motor with small flange B14 star connection ( Y ) 400 V

Code:60002540 P-IE1

0,25 kW / 900_IMB14F1_IE1_MS 71 2-6_230/400 V_D/Y

100,1 EUR

Skladem 1 pcs

0.25 kW / 6p. B14F1 (Y) 400V

Code:60002540 P-IE1-B

0,25 kW / 880_IMB14F1_IE1_MSH 71 2-6_230/400V_ D/Y

146,9 EUR

Na dotaz

0.25 kW / 6p. / B14F1 ( Y ) 400 V / Brake: 230V AC/ 103V DC_4 Nm

Code:60003746 P-IE1

0,37kW/ 890_IMB14F1_IE1_MS 71 3-6_230/400 V_D/Y

107,7 EUR

Skladem 1 pcs

electric motor with small flange B14F1 star connection ( Y ) 400 V

Code:701840-MY

0,18 kW / 900_IMB14F1_MYT 71 1-6_230 V

95,61 EUR

Skladem ext. 1 pcs

Asynchronous single-phase electric motor with small flange B14 F1 230 V
