Set MR 063/130_i=750+0.75kW/4p.90/B14_380V_n2= 1.9 rpm
| Délka dodání z ext. skladu | 20 |
| Olejová náplň | ISO: VG320; syntetiký olej |
| Pracovní poloha. | -- |
| Pracovní teplota [°C]: | od -25°C až +50°C |
| Provedení - tvar příruby IM: | IM B14( F1)-s malou přírubou |
| Výběr převodového poměru | 1 : 750 |
| Servisní faktor (SF). | 0,90 |
| Jmenovité napětí [V]: | 380V~440V |
| Výběr vstupních param. motor. př | PAM 80 / hřídel pr.19mm |
| Výkon elektromotoru [kW] | 0,75 kW |
| Dutá výstupní hřídel pr.( mm) | 45 |
| Výstupní točivý moment (Nm). | 2005 Nm |
| Otáčky (n2)ot./min: | n2= 1,9 min-1 |

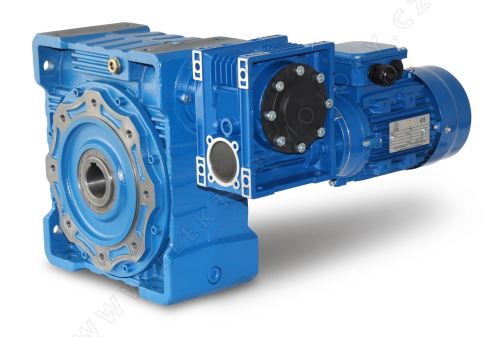

Double worm motor (worm gear - worm gear - three-phase motor)
Voltage = 3 x 230/400 V-50 Hz, 3 x 265/460 V-60 Hz (± 5% according to VDE 0530),
Protection level = IP55, ISO class = F (155 °C), Operating mode = S1, Duty cycle = S1- 100 %,
Hollow shaft = 45 mm, Motor speed = 4 poles, Ratio (i) = 250, Torque = 1474 Nm,
Service factor (fs) = 1, Terminal block = upper (rotating), weight = 65.62 kg. Color = RAL 5010 (gentian blue),
Temperature sensor = NO, Gearbox housing = cast iron, Ball bearing = SKF, C&U or equivalent,
Cooling = Axial fan (plastic). The worm motor is suitable for use with a frequency converter and
complies with IEC 60034-30: 2008. The gearmotor can be operated in both directions and
contains oil filling on delivery. Open hollow shafts must be closed with caps.
According to VDE 0105 or IEC 364, all work on the electric drive may only be carried out by qualified specialist personnel.
From gearbox size 110 onwards, the mounting position must be specified. All product photos are non-binding examples!
