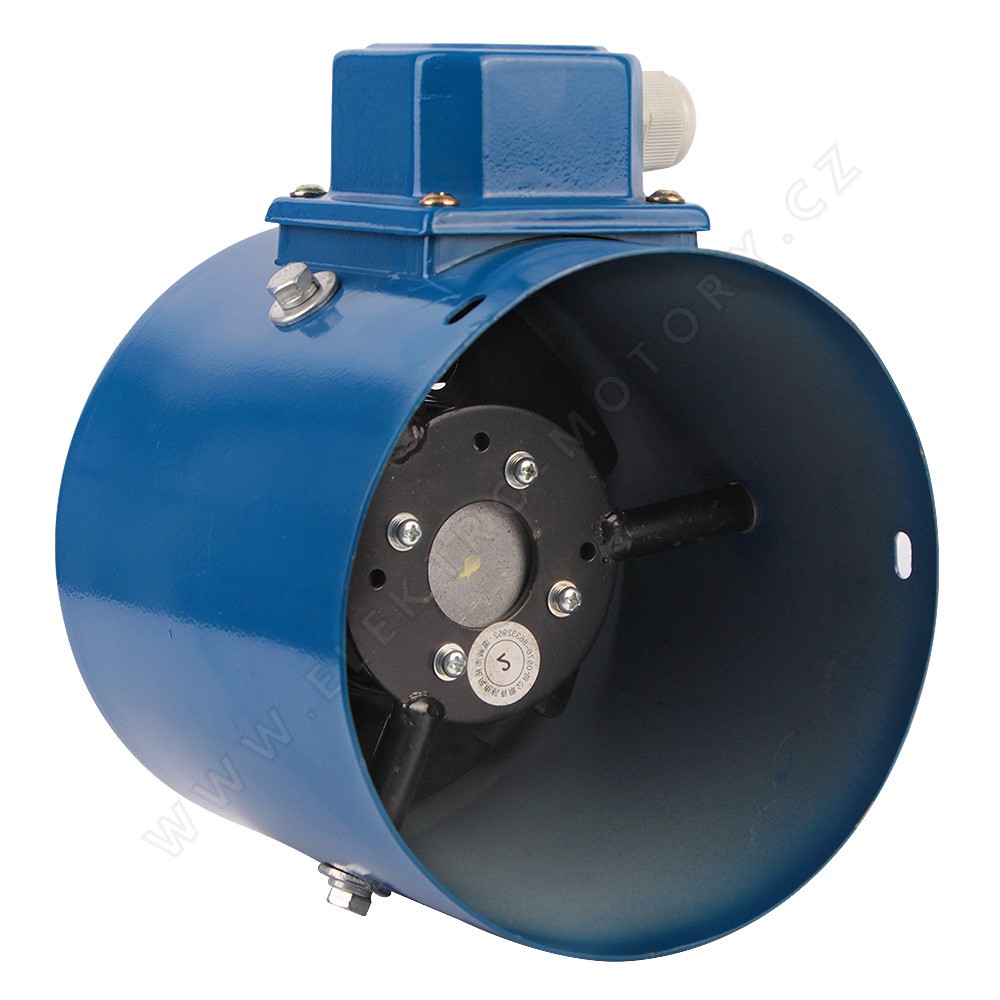

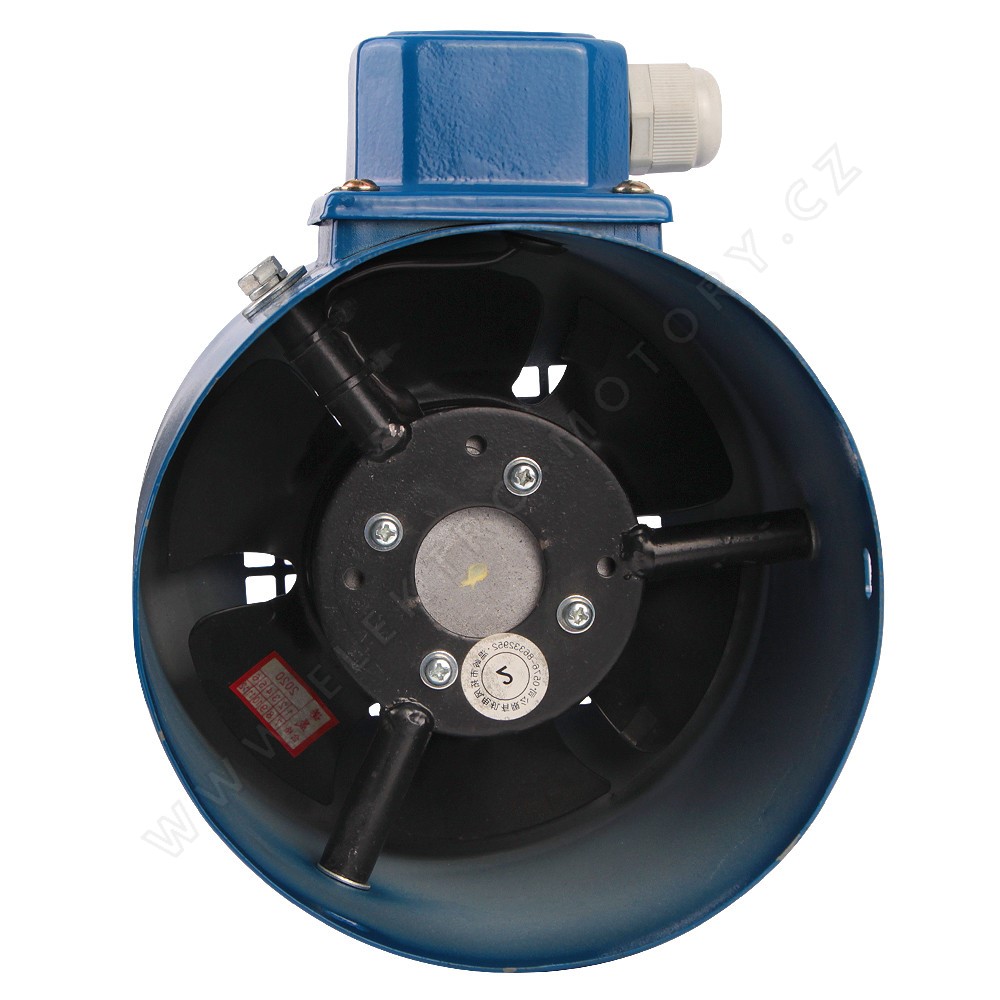

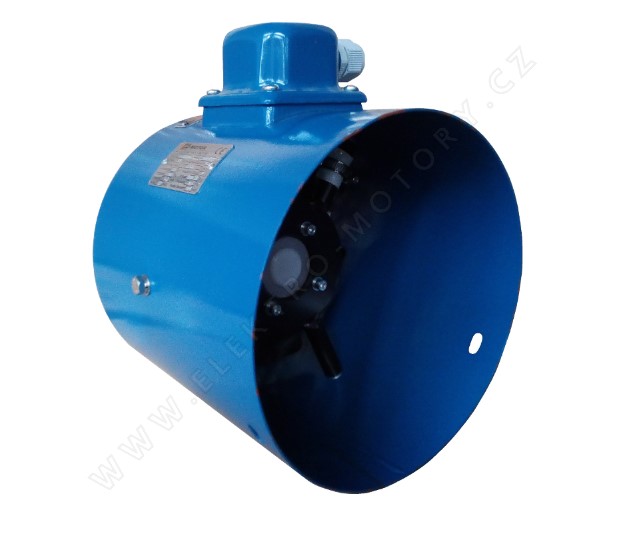

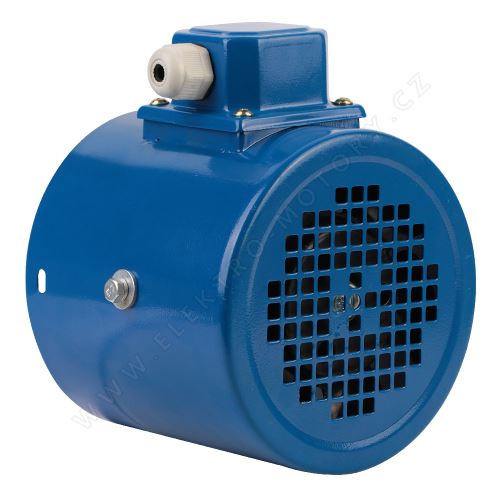

External cooling series G-90B / 2600 rpm; 230V; 50Hz

External cooling of the G-90B series to an electric motor with an axial height of 90 mm. 1f ~ D - 230V; 0.009A; 45W Standard paint: RAL 5010 (blue) diameter D - 173mm
Obrázek (2)
Obrázek (2)
Obrázek
Obrázek (1)
Obrázek (3)
68,97 EUR 57,00 EUR excl. VAT
Quantity discountsfrom 2 pcs66,90 EUR55,29 EURfrom 5 pcs65,52 EUR54,15 EURfrom 10 pcs62,07 EUR51,30 EUR
Buy
Poptat
Na dotaz
Personally in shop:on requestWith a delivery company:on request
CodeMC 300900-GPNX/173 x 188mm ( D x L3 )(S2G) 3/24ProducerPRO MOTOR
Jmenovitý proud [A]:0,09 A
Sací výkon (kpa):80 kpa
Polarita (otáčky/min)2-pól (2800 ot/min)
Úroveň hluku [dBA]:65 dB
Rozměry průměr D x L(A)[mm]:173 x 188 mm; DxL
Vstupní frekvence [Hz]50Hz
Třída krytí IP:IP55
Napětí [V] / zapojení [Y.nebo D]230V; D
Průtok vzduchu [ (±10%)m3/h] :91 m3/h
Obchodní název motoruUniverzální
Osová výška motoru H [mm]90
show all hide

External cooling of the G-90B series to an electric motor with an axial height of 90 mm.

  • 1f ~ D - 230V; 0.009A; 45W

  • Standard paint: RAL 5010 (blue)
  • diameter D - 173mm


External cooling fans are supplied with single-phase voltage. Possibility to connect directly to the motor terminal board or to supply it independently of the motor operation using a frequency converter, thermostat…

The fan is located in the cover of the electric motor, so installation is easy by replacing the original cover with a cover with external cooling.

The big advantage is independent cooling at engine speed. The engine cools down even when it is stopped.

DescriptionDownload
