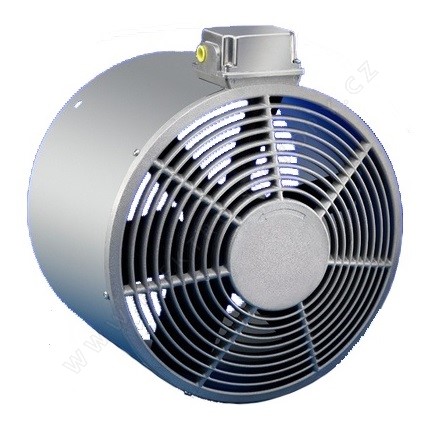

External cooling of the FBC63 / 2950 series rpm; 230V / D; 400V / DY; 50 / 60Hz
Universal external cooling of the FBC63 series for an electric motor with an axial height of 63 mm.
1f ~ D - 220 ~ 227V; 0.105A; 25W = 50Hz
3f ~ D - 200 ~ 303V; 0.14A; 25W = 50Hz
3f ~ Y - 346 ~ 525V; 0.08A; 25W = 50Hz
motor - IP66 protection; IC416
Standard paint:
RAL7030 (gray)
diameter D - 121mm
Skladem ext. 1 pcs
| Délka dodání z ext. skladu | 7 |
| Polarita (otáčky/min) | 2-pól (2800 ot/min) |
| Rozměry průměr D x L(A)[mm]: | 121 x 160 mm; DxL |
| Vstupní frekvence [Hz] | 50Hz, 60Hz |
| Třída krytí IP: | IP66 |
| Napětí [V] / zapojení [Y.nebo D] | 230V; D, 400V; Y |
| Obchodní název motoru | 1LA SIEMENS, Univerzální |
| Osová výška motoru H [mm] | 63 |
Universal external cooling of the FBC63 series for an electric motor with an axial height of 63 mm.
-
1f ~ D - 220 ~ 227V; 0.105A; 25W = 50Hz
-
3f ~ D - 200 ~ 303V; 0.14A; 25W = 50Hz
-
3f ~ Y - 346 ~ 525V; 0.08A; 25W = 50Hz
-
motor - IP66 protection; IC416
-
Standard paint:
RAL7030 (gray)
-
diameter D - 121mm
1f ~ D - 220 ~ 227V; 0.105A; 25W = 50Hz
3f ~ D - 200 ~ 303V; 0.14A; 25W = 50Hz
3f ~ Y - 346 ~ 525V; 0.08A; 25W = 50Hz
motor - IP66 protection; IC416
| Standard paint: | RAL7030 (gray) |
diameter D - 121mm
External cooling fans are supplied with single-phase / three-phase voltage. Possibility to connect directly to the motor terminal board or to supply it independently of the motor operation using a frequency converter, thermostat…
The fan is located in the cover of the electric motor, so installation is easy by replacing the original cover with a cover with external cooling.
The big advantage is independent cooling at engine speed. The engine cools down even when it is stopped.
