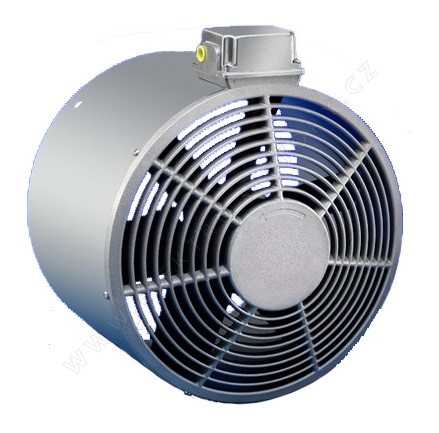

External cooling of the FBC225 series / 1450 rpm; 230V/D; 400V/DY; 50/60 Hz
Cooling of the FBC225/230V and 400V series, axial height 225 mm.
1f~D - 230~227V; 0.64A; 73W = 50Hz
3f~D - 200 ~ 303V ; 0.98A; 98W = 50Hz
3f~Y - 346 ~ 525V ; 0.46A; 98W = 50Hz
motor - protection IP66; IC416
Standard coating:
RAL7030 (grey)
diameter D - 395mm
Skladem ext. 1 pcs
| Délka dodání z ext. skladu | 10 |
| Polarita (otáčky/min) | 4-pól (1400 ot/min) |
| Rozměry průměr D x L(A)[mm]: | 443 x 435 mm; DxL |
| Vstupní frekvence [Hz] | 50Hz, 60Hz |
| Typ MOLL MOTORU | Y2-225, Y2HE-225, Y2PE-225 |
| Třída krytí IP: | IP66 |
| Napětí [V] / zapojení [Y.nebo D] | 230V; D, 400V; Y |
| Obchodní název motoru | Univerzální |
| Osová výška motoru H [mm] | 225 |
External cooling series G-225B / 1450 rpm-1; 400V; 50Hz
Skladem ext. 1 pcs
170,3 EUR excl. VAT206,1 EURUniversal external cooling of the FBC225 series for an electric motor with an axial height of 225 mm.
-
1f~D - 230~227V; 0.64A; 73W = 50Hz
-
3f~D - 200 ~ 303V ; 0.98A; 98W = 50Hz
-
3f~Y - 346 ~ 525V ; 0.46A; 98W = 50Hz
-
motor - protection IP66; IC416
-
Standard coating: RAL7030 (grey) - diameter D - 395mm
External cooling fans are powered by single-phase/three-phase voltage. Possibility to connect directly to the motor terminal board or supply power independently of the motor operation using a frequency converter, thermostat...
The fan is located in the cover of the electric motor, so installation is simple by replacing the original cover with a cover with external cooling.
A big advantage is independent cooling on the engine speed. The engine cools down even when it is stopped.
DescriptionDownload
