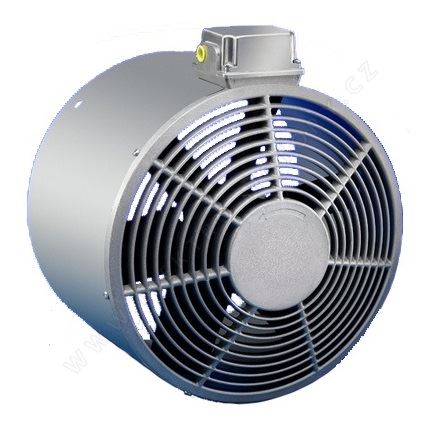

External cooling of the FBC200 / 1450 rpm series; 230V / D; 400V / DY; 50 / 60Hz
Universal external cooling of the FBC200 series for an electric motor with an axial height of 200 mm.
1f ~ D - 230 ~ 227V; 0.64A; 73W = 50Hz
3f ~ D - 200 ~ 303V; 0.98A; 98W = 50Hz
3f ~ Y - 346 ~ 525V; 0.46A; 98W = 50Hz
motor - IP66 protection; IC416
Standard paint:
RAL7030 (gray)
diameter D - 395mm
Skladem ext. 1 pcs
| Délka dodání z ext. skladu | 10 |
| Polarita (otáčky/min) | 4-pól (1400 ot/min) |
| Rozměry průměr D x L(A)[mm]: | 395 x 360 mm; DxL |
| Vstupní frekvence [Hz] | 50Hz, 60Hz |
| Typ MOLL MOTORU | Y2-200, Y2HE-200, Y2PE-200 |
| Třída krytí IP: | IP66 |
| Napětí [V] / zapojení [Y.nebo D] | 230V; D, 400V; Y |
| Obchodní název motoru | Univerzální |
| Osová výška motoru H [mm] | 200 |
Universal external cooling of the FBC200 series for an electric motor with an axial height of 200 mm.
-
1f ~ D - 230 ~ 227V; 0.64A; 73W = 50Hz
-
3f ~ D - 200 ~ 303V; 0.98A; 98W = 50Hz
-
3f ~ Y - 346 ~ 525V; 0.46A; 98W = 50Hz
-
motor - IP66 protection; IC416
-
Standard paint: RAL7030 (gray) - diameter D - 395mm
External cooling fans are supplied with single-phase / three-phase voltage. Possibility to connect directly to the motor terminal board or to supply it independently of the motor operation using a frequency converter, thermostat…
The fan is located in the cover of the electric motor, so installation is easy by replacing the original cover with a cover with external cooling.
The big advantage is independent cooling at engine speed. The engine cools down even when it is stopped.
