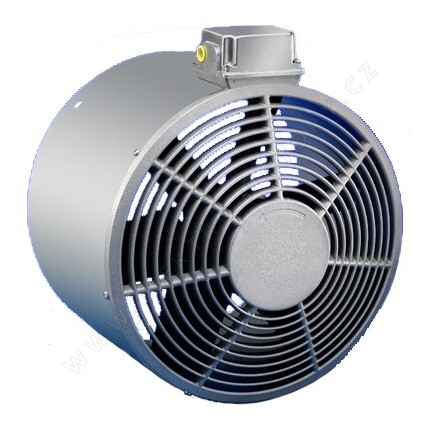

External cooling of the FBC100 / 2950 series rpm; 230V / D; 400V / DY; 50 / 60Hz

Universal external cooling of the FBC100 series for an electric motor with an axial height of 100 mm. 1f ~ D - 220 ~ 227V; 0.30A; 58W = 50Hz 3f ~ D - 200 ~ 303V; 0.40A; 78W = 50Hz 3f ~ Y - 346 ~ 525V; 0.23A; 78W = 50Hz motor - IP66 protection; IC416 Standard paint: RAL7030 (gray) diameter D - 200mm
Obrázek
-4 %
Offer
List price incl. VAT 160,0 EUR 154,1 EUR 127,4 EUR excl. VAT
Buy
Poptat
Skladem ext. 1 pcs
Personally in shop:Friday 5.4With a delivery company:Monday 8.4
CodeMC 231000-FBCPN200 x 184mm ( D x L3 ) 1/24ProducerMOLL MOTOR
Polarita (otáčky/min)2-pól (2800 ot/min)
Rozměry průměr D x L(A)[mm]:200 x 184 mm; DxL
Vstupní frekvence [Hz]50Hz, 60Hz
Třída krytí IP:IP66
Napětí [V] / zapojení [Y.nebo D]230V; D, 400V; Y
Obchodní název motoru1LA SIEMENS, Univerzální
Osová výška motoru H [mm]100
show all hide

External cooling series G-100B / 2750 rpm-1; 230V; 50Hz

External cooling series G-100B / 2750 rpm-1; 230V; 50Hz
Skladem 2 pcs
75,58 EUR excl. VAT91,45 EUR

External cooling series G-100B / 2750 rpm-1; 230V; 50Hz

External cooling series G-100B / 2750 rpm-1; 230V; 50Hz
Skladem 3 pcs
75,08 EUR excl. VAT90,85 EUR

Universal external cooling of the FBC100 series for an electric motor with an axial height of 100 mm.

  • 1f ~ D - 220 ~ 227V; 0.30A; 58W = 50Hz
  • 3f ~ D - 200 ~ 303V; 0.40A; 78W = 50Hz
  • 3f ~ Y - 346 ~ 525V; 0.23A; 78W = 50Hz
  • motor - IP66 protection; IC416
  • Standard paint: RAL7030 (gray)
  • diameter D - 200mm


External cooling fans are supplied with single-phase / three-phase voltage. Possibility to connect directly to the motor terminal board or to supply it independently of the motor operation using a frequency converter, thermostat…

The fan is located in the cover of the electric motor, so installation is easy by replacing the original cover with a cover with external cooling.

The big advantage is independent cooling at engine speed. The engine cools down even when it is stopped.
