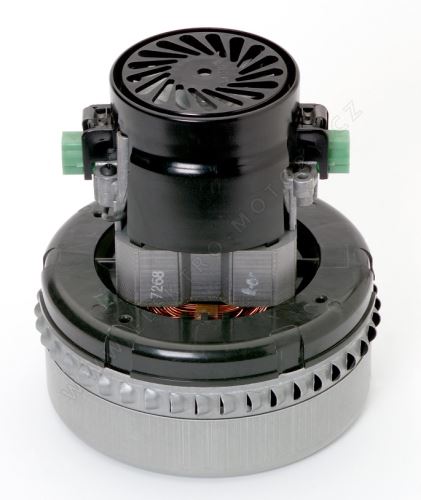

116406-18 500W / 36V DC 2 stage peripheral vacuum cleaner motor Bypass

Suction motor 500W / 36V DC for vacuum cleaner for dry and wet suction with separate cooling. Replacement: 116406-00 The exhaust air only passes through the engine turbine. fan diameter (A) - 144 mm overall height: (G) - 175 mm
Obrázek
Obrázek
Rozměry
197,2 EUR 163,0 EUR excl. VAT
Buy
Poptat
Můžeme Vám zajistit expedici od: Thursday 4.4 v počtu 1 ks.
Personally in shop:on requestWith a delivery company:on request
CodeMVSB 417406-36PN6-18/ 144/175 mm+ ProducerAMETEK LAMB
Průměr pro šroub D [mm]4
Maximální příkon [ W]0500
Rozteč uhlíků E [mm]122 mm
Rozměr H [mm]108
Průměr statoru F [mm]86
Výška statoru L [mm]39
Výška turbíny I [mm]67
Rozměr M [mm]18 mm
Průměr turbíny A [mm]144 - 148 mm (5,7")
Celková výška G [mm]175
Počet stupňů turbíny:2
Jmenovité napětí [V]:36V DC
show all hide

Suction motor 500W / 36 V DC into a vacuum cleaner for dry and wet suction with separate cooling.

Replacement: 116406-00

The exhaust air only passes through the engine turbine.

  • fan diameter (A) - 144 mm
  • overall height: (G) - 175 mm


This engine has sealed bearings so dust and dirt cannot get into it. This allows for longer engine life.

Protect engines from dust and dirt with an engine filter. This prolongs the life of the engine and is a prerequisite for all engines.
