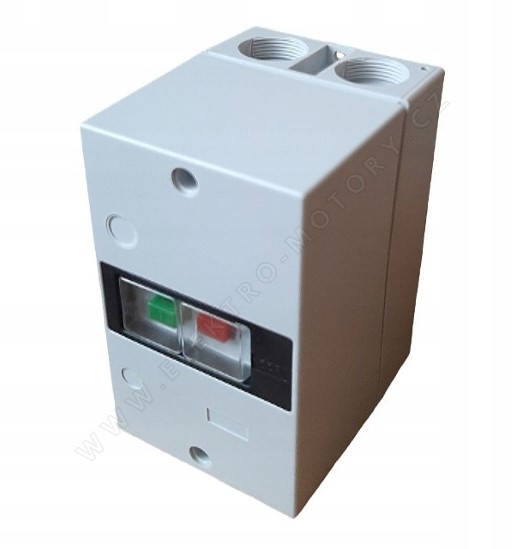

RB6 motor starter; 10 ÷ 16A IP55 380V in the cabinet

Motor starter (circuit breaker with thermal protection) RB6 10 ÷ 16A IP55 with housing RB6 three-phase circuit breakers are used for control and protection of motors according to IEC 947-1, 947-2 and IEC 60204 IEN connections using screw terminals. Control switch: I and O buttons. Trip class thermal protection- 10. The switches are designed for 3-phase protection. motor with power up to 15 kW / 400V. Current range min. 10 A Current range max. 16 A
Spouštěč motoru RB6, 10÷16A IP55 380V ve skříni
Offer
Spouštěč motoru RB6, 10÷16A IP55 380V ve skříni
RB6 motor starter; 10 ÷ 16A IP55 380V in the cabinet

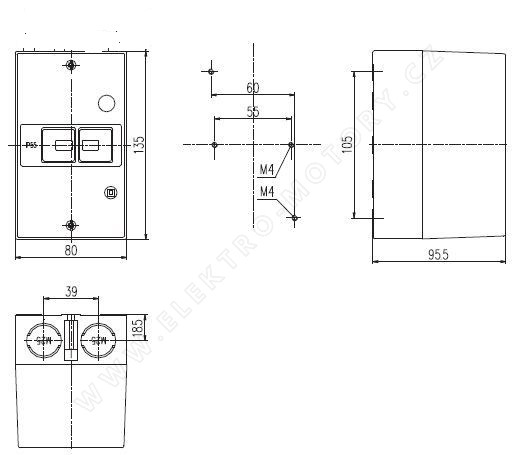

Rozměry (2)
47,22 EUR 39,03 EUR excl. VAT47,22 EUR / pcs
Quantity discountsfrom 2 pcs45,80 EUR37,86 EURfrom 5 pcs44,86 EUR37,07 EURfrom 10 pcs43,92 EUR36,29 EUR
Buy
Poptat
Skladem 8 pcs
Ext. stock 324 Qty
Personally in shop:zítraWith a delivery company:Thursday 29.10
CodeEPS 025555PN(S1G) 10ProducerKEDU
Délka dodání z ext. skladu14
Maximální proud [A]10 A_240V~400V, 13 A_240V~400V, 16 A_240V~400V
Jmenovité napětí [V]:230V~240V, 380V~440V

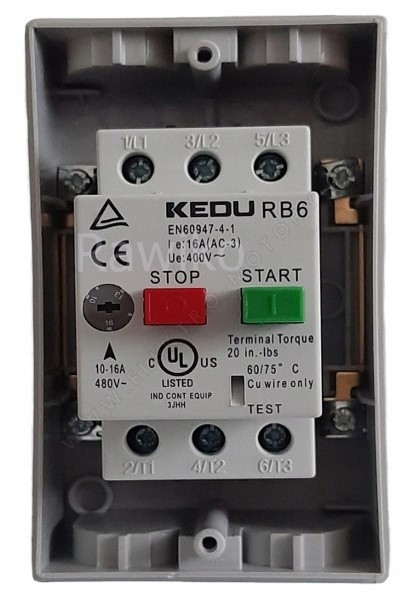

Motor starter (circuit breaker with thermal protection) RB6 10 ÷ 16A IP55 with housing

RB6 three-phase circuit breakers are used for control and protection of motors according to IEC 947-1 , 947-2 and IEC 60204 IEN connections using screw terminals. Control switch: I and O t buttons . Switching thermal protection class - 10 .
The switches are designed to protect 3- phase. motor with power up to 15 kW / 400V.

Current range min. 10 A
Current range max. 16 A


Motor protection switch DIN EN60947-4-7 UE = 400V ~, IE = AC3: RB6 (see max settings.)
Temperature range -5 to + 40 ° C , in enclosure IP55 , 2 - wire screw , additionally in enclosure
N + PE via blocks on the left and right side next to the switching device
The device can also be used for 1 ~ AC motors !
For this purpose , L1 connected to terminal 1 / L1 and N to terminal 3 / L2 , between 4 / T2 and 5 / L3
the bridge is inserted . The motor is connected to 2 / T1 and 6 / T3. This is also in
AC ensures that , because all three trigger devices are used , the characteristics
it is not disturbed and the connected motor is optimally protected!
M25 thread for glands.
DescriptionDownload
