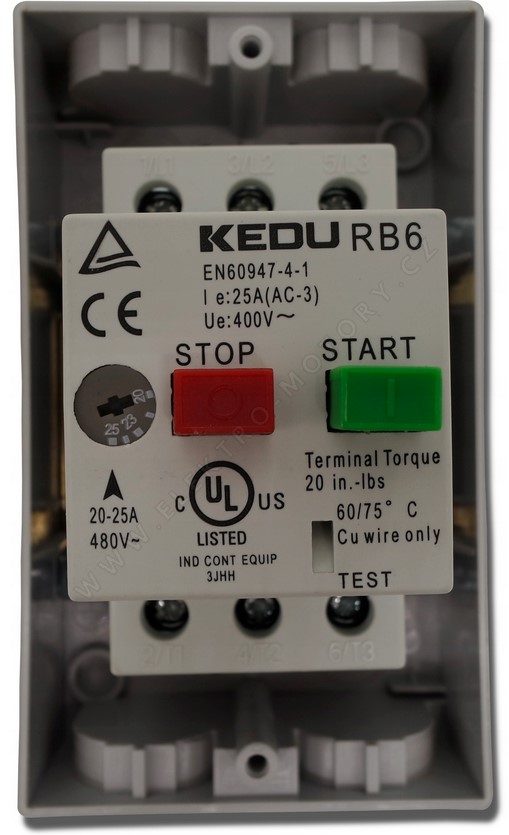

RB6 engine starter; 20÷25A IP55 380V in the cabinet
RB6 20÷25A / 380V
Skladem 1 pcs
Ext. stock 324 Qty
| Jmenovité napětí [V]: | 380V~440V |
Motor starter (circuit breaker with thermal protection) RB6 20÷25A IP55 with housing
RB6 three-phase circuit breakers are used to control and protect motors according to IEC 947-1 , 947-2 and IEC 60204 IEN connection using screw terminals. Control switch: I and O t levers . Class of tripping thermal protection - 10 .
The switches are intended for 3- phase protection. motor with power up to 15 kW / 400V.
| Current range min. | 20 A |
| Current range max. | 25 A |
Motor switch protection DIN EN60947-4-7 UE = 400V ~, IE = AC3 , : RB6 (see max setting. )
Temperature range -5 to + 40 ° C , in cabinet IP55 , 2 - wire screw , additionally in cabinet
N + PE via the blocks on the left and right side next to the switchgear
The device can also be used for 1 ~ AC motors !
For this purpose , L1 connected to terminal 1 / L1 and N to terminal 3 / L2 , between 4/ T2 and 5 / L3
bridge is inserted . The motor is connected to 2 / T1 and 6 / T3. This is also in
AC ensures that , because all three triggering devices are used , characteristics
is not disturbed and the connected motor is optimally protected!
M25 thread for glands.
