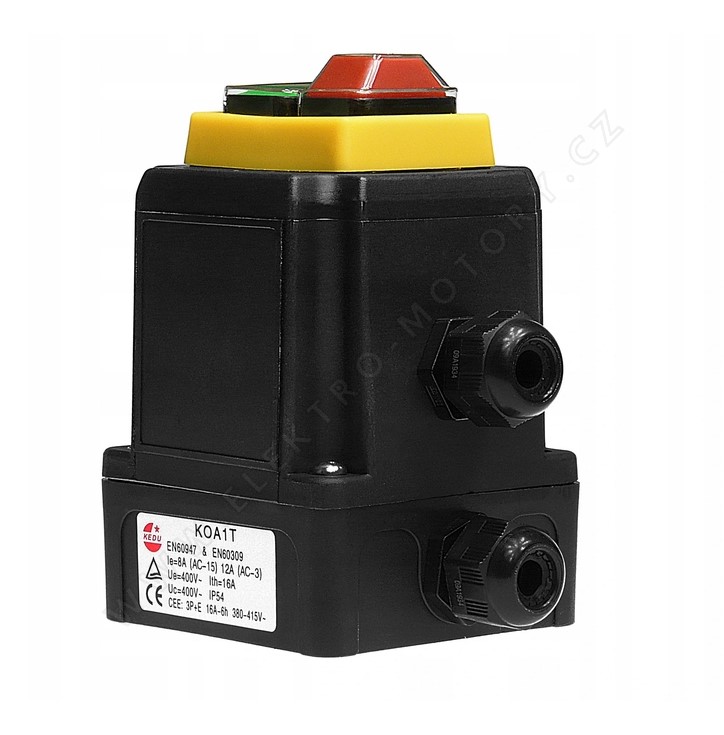

KOA 1T; 400V_Uc=230V Three-phase electromagnetic switch
| Délka dodání z ext. skladu | 14 |
| Jmenovitý proud [A]: | 16,0 A |
| Jmenovitý proud cívky spínače(A) | AC-12A, Uc=230V |
| Spínací výkon spínače | le=8A (AC-15) 16A (AC-3), Ue=400V, lth=16A |
| Třída krytí IP: | IP54 |
| Jmenovité napětí [V]: | 380V~440V |
| Způsob přepínání | ON - OFF |
Diagram1pcsworth 0 EUR
Connection cable (socket + faston)1pcsworth 0 EURThree-phase electromagnetic switch, cable assembly with 2 outlets
3Ph, switching power 4.0kW 400V?/AC-3, with undervoltage u: 400V / 50Hz, with temperature contact connection.
Switching capacity AC-3 400V/4.0kW with starting undervoltage.
The possibility of connecting a temperature contact.
Cable grommets for power and motor cables
WITHOUT connection cables
Protective cover on the keyboard

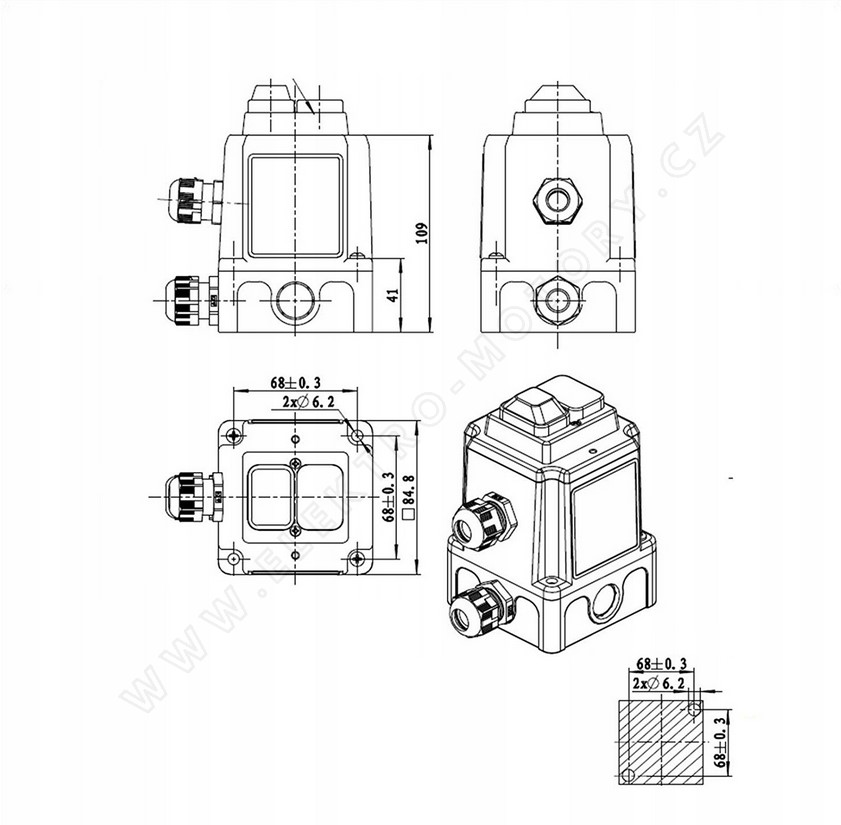

Mounting size measured diagonally at 95 mm
Rated current: 16 A Coil: Uc = 400V)

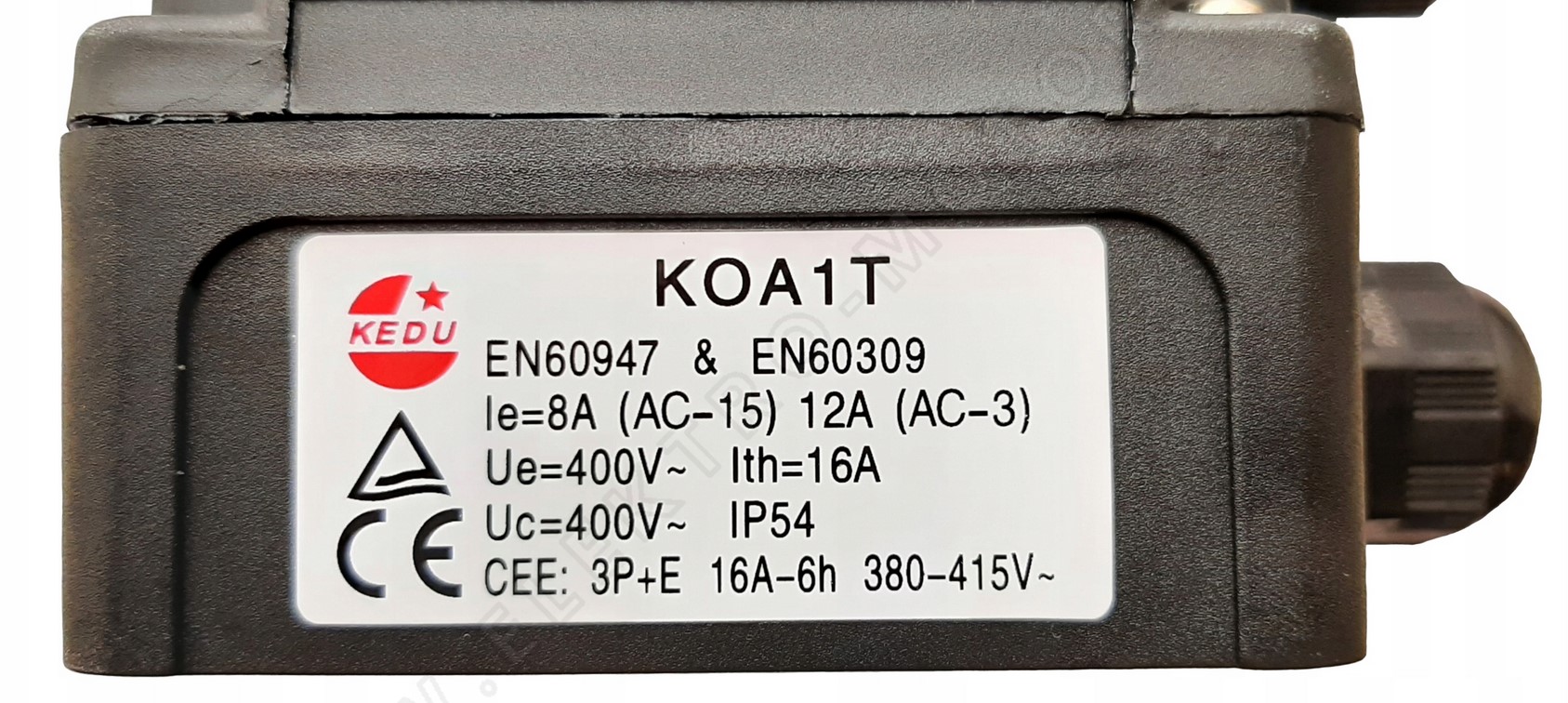

Degree of protection: IP54 Certificates: TUV, CE, DIN VDE0620.
Suitable for all other applications, wood splitters, drills, saws (rotary machines)....
A three-phase electromagnetic switch protects against automatic reclosing in case of restoration of supply voltage. It can cooperate with a thermal sensor built into the motor winding and turn off the motor if the permissible temperature of the winding is exceeded.
