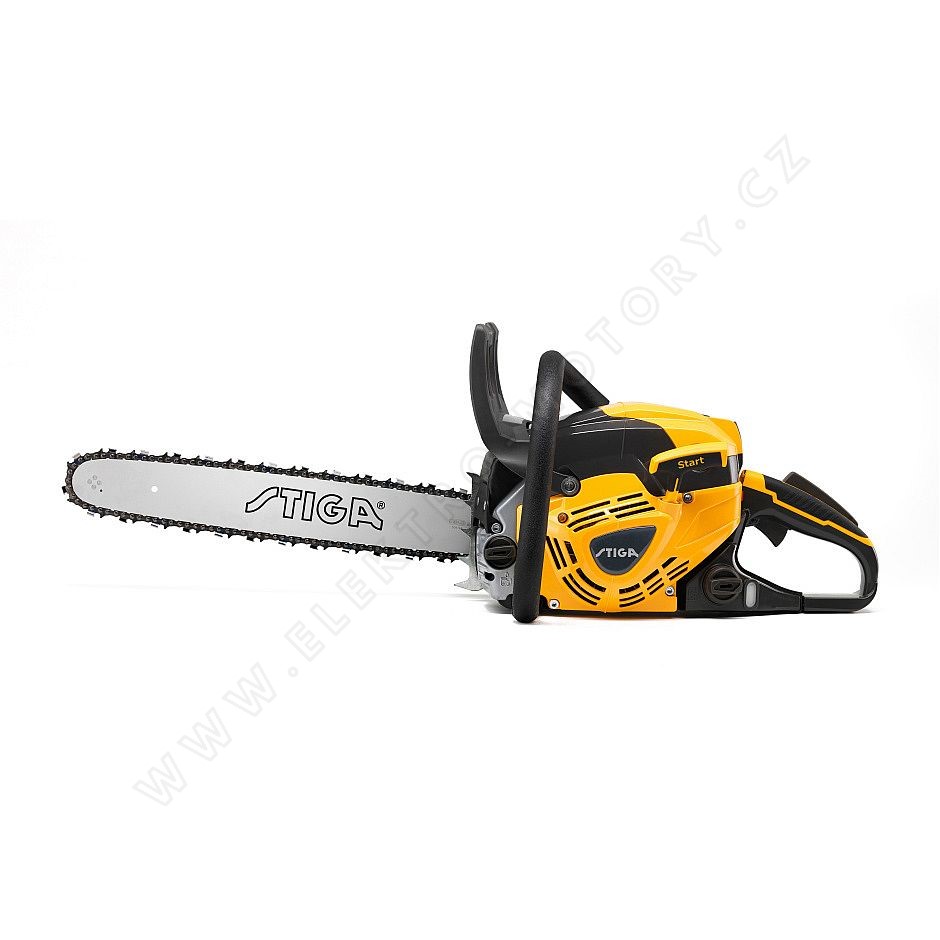

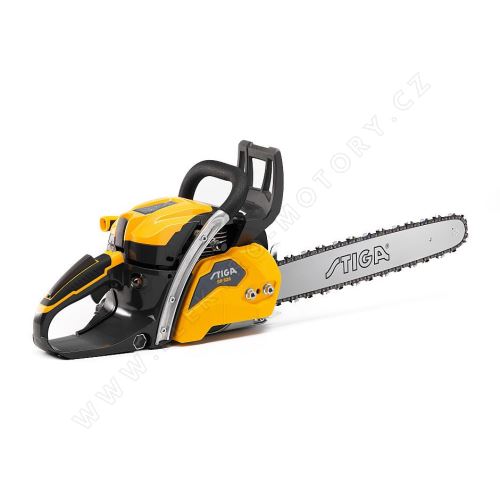

Gasoline chainsaw CS 755 Stiga, 2.3kW, 45cm
| Polarita (otáčky/min) | 12500 min-1 |
| Délka vodicí lišty | 45.00 cm |
| Rychlost řetězu | 23.10 m/s |
| Objem olejové nádržky | 260.00 ml |
| Objem nádoby | 470ml |
| Výkon | 2300.00 W |
DESCRIPTION
The reliable STIGA SP 526 gasoline chainsaw has a good weight-to-power ratio, a 45cm (18") guide bar, and is therefore suitable for domestic and forestry work.
The 52cc (2.5kW) petrol engine is complemented by a magnesium engine cover that ensures strength, reliability and rapid cooling.
The decompression valve allows easy starting, the oil pump is automatic and adjustable.

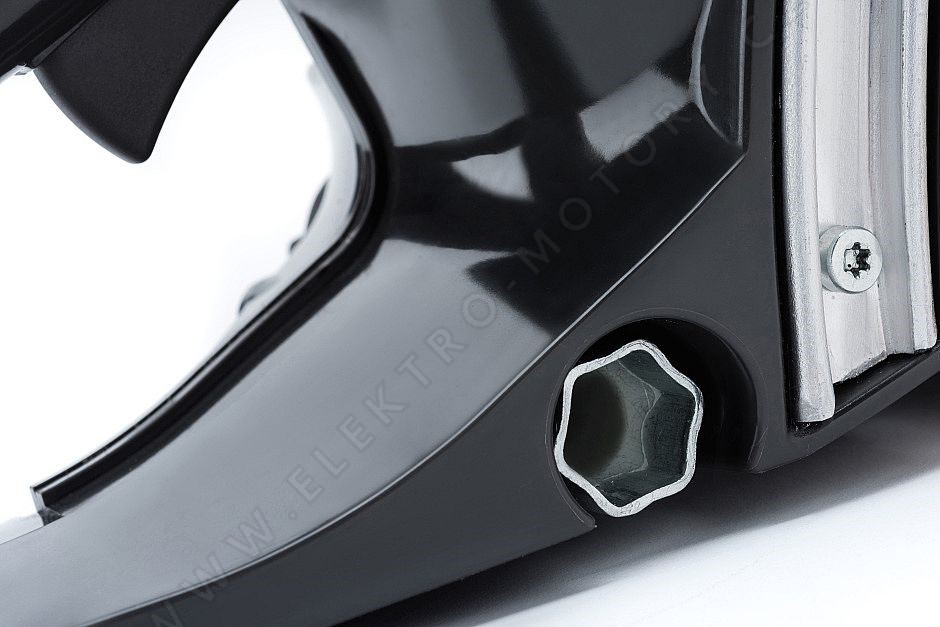

Maintenance operations can be performed quickly and easily thanks to a number of features such as the removal of the air filter cover without the need for additional tools, the tension wrench located under the rear handle and the fuel tank level monitoring window. The ergonomic soft handle and spring system ensure less vibration and greater comfort.
The hand and overrun chain brake allows the chain to be stopped in 0.089 seconds with just one hand and offers maximum safety in the event of kickback.
The new 52cc petrol engine provides the power needed for comfortable and longer-lasting jobs while maintaining low emissions and optimal fuel consumption.

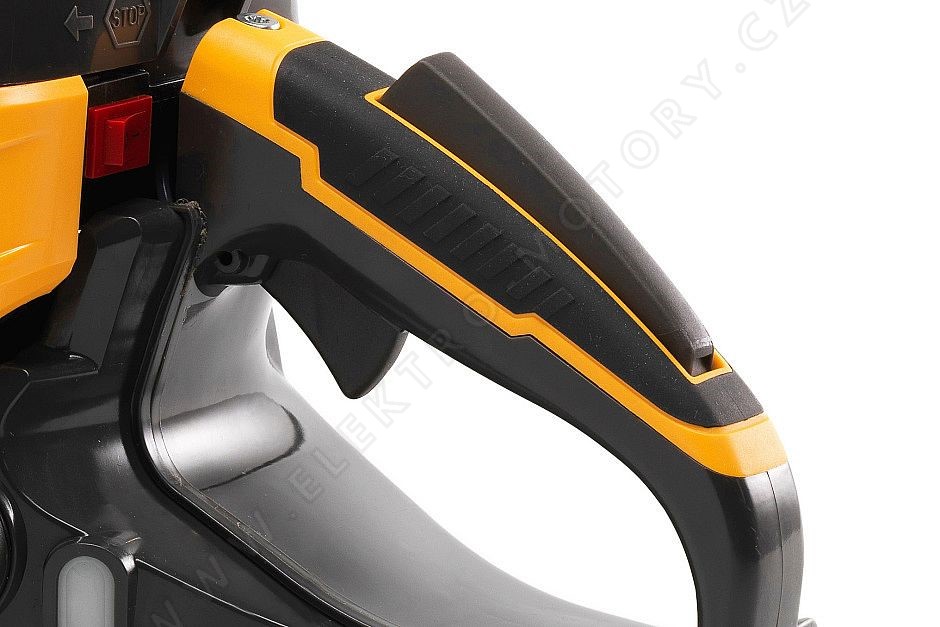

The ergonomic front handle and soft rear handle in conjunction with conveniently located levers ensure a comfortable and secure grip.
The quick release system allows immediate access to the air filter and spark plug for maintenance.

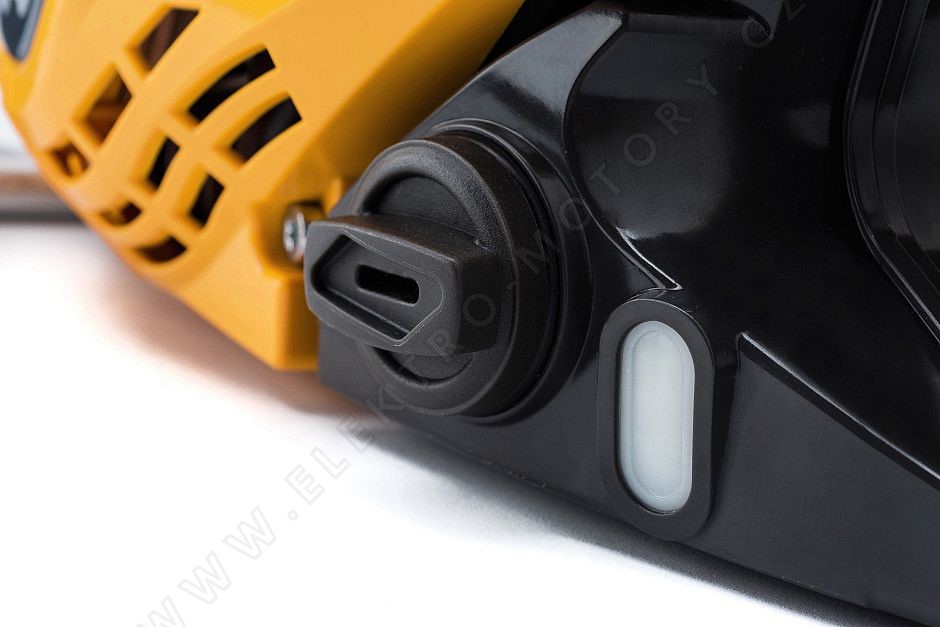

The tank lid is in a convenient and easily accessible position and you can check the level using the practical window.
WITH SPECIFICATIONS
Drive type: gasoline two-stroke engine
Power: 2.3 kW
Engine volume: 52 cm3
Engine speed: 12500 rpm
Maximum engine speed: 12500 rpm
Idle speed (+/- 100): 3100 rpm
Starter: manual
Primer: yes
Choke: manual with automatic return
Fuel tank capacity: 0.47 l
Carburetor type: butterfly valve
Ignition coil type: digital
Air filter type: nylon mesh
Bar type: bar with toothed wheel
Rod length: 45 cm
Bar Length (inches): 18 in
Chain Type: 325" .058" (21BPX-72X)
Chain speed: 23.1 m/s
Chain brake: manual and inertial
Oil tank capacity for lubrication: 0.26 l
Oil pump: automatic adjustable
Chain tensioning system: side screw tensioning
Weight: 8 kg
