Jmenovité napětí [V]: | 230V~240V |
Jmenovitý proud [A]: | nezadáno |
Plovákový vypínač | ANO |
Ponor maximální [m] | 7 m |
Průměr sací hadice | 1-1/4" |
Průtok maximální [l/min] | 300 litrů/min |
Teplota čerpaného média max.[C°] | 35.0 °C |
Výkon elektromotoru [kW] | 0,90 kW |
Výtlak maximální [m] | 9 m |
DESCRIPTION

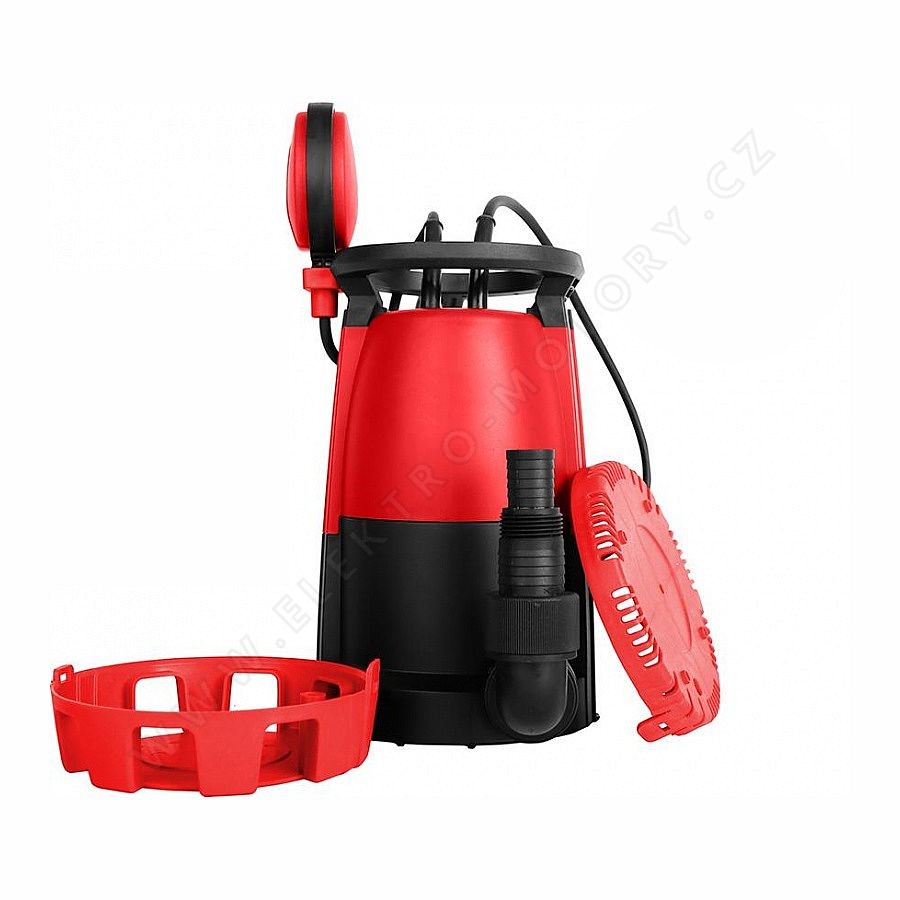

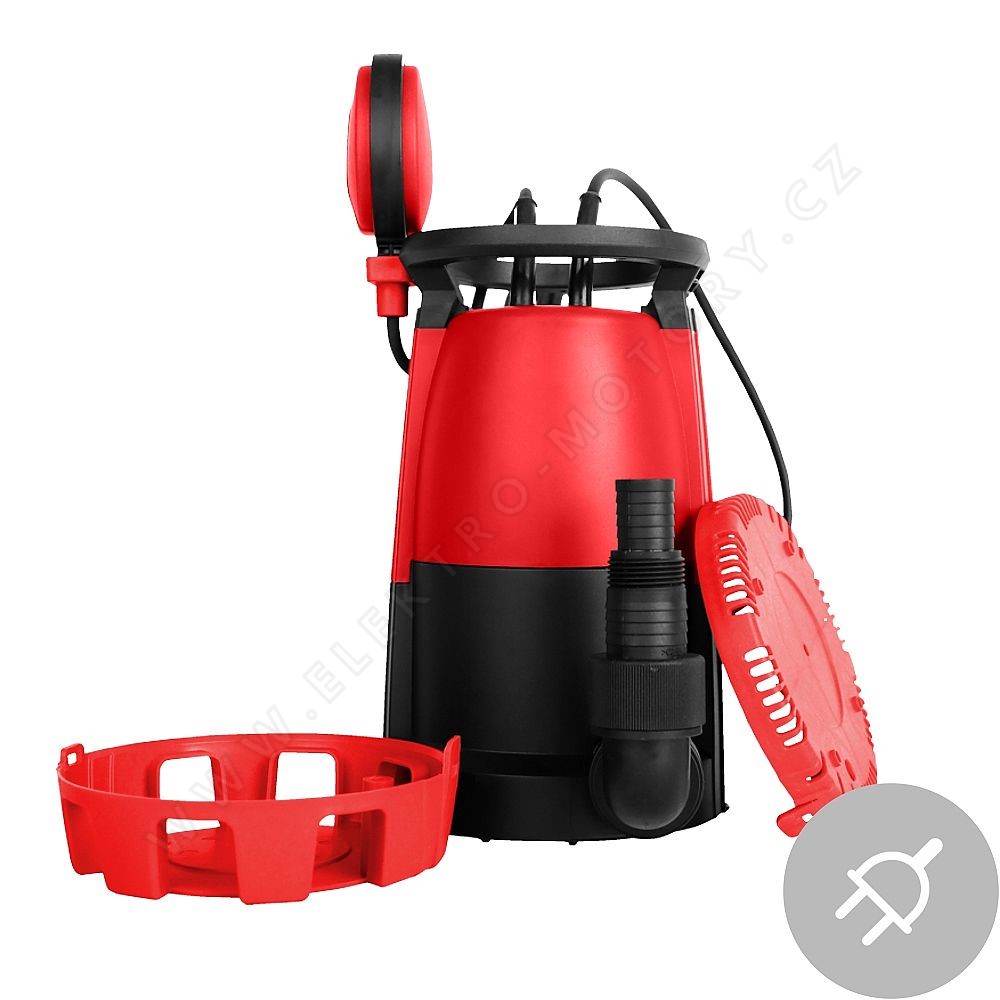

Most often, a submersible pump is used for dewatering during flooding, pumping and draining reservoirs (e.g. swimming pools), pumping water from wells and shafts.
The submersible pump is intended for pumping:
- clean or rainwater
- chlorinated water (e.g. swimming pools)
- service water
- polluted water with a maximum of 5% of insoluble substances with a maximum diameter of 30 mm
The submersible pump is not intended for pumping:
- drinking water
- salt water
- liquid foods
- aggressive chemicals
- corrosive, flammable, explosive or gaseous liquids
- liquids whose temperature exceeds 35°C.
- sandy water and abrasive fluids
SPECIFICATIONS
Max. flow rate: 18000 l/h
Max. displacement: 8.9 m
Max. immersion depth: 7 m
Max. particle diameter: 30 mm
Max. water temperature: 35°C
Cable length: 10 m
Insulation class: B
Degree of protection: IPX8
